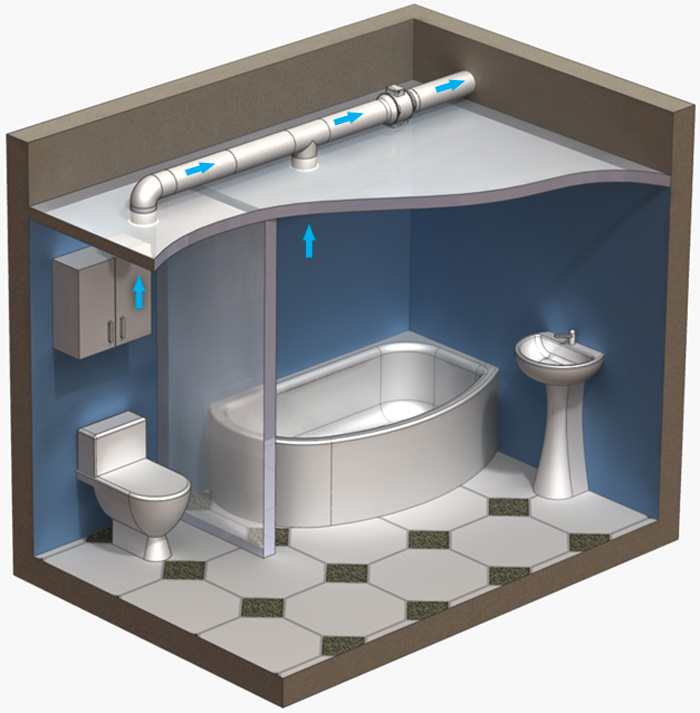

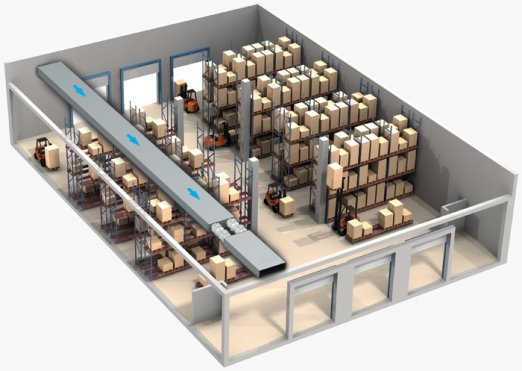

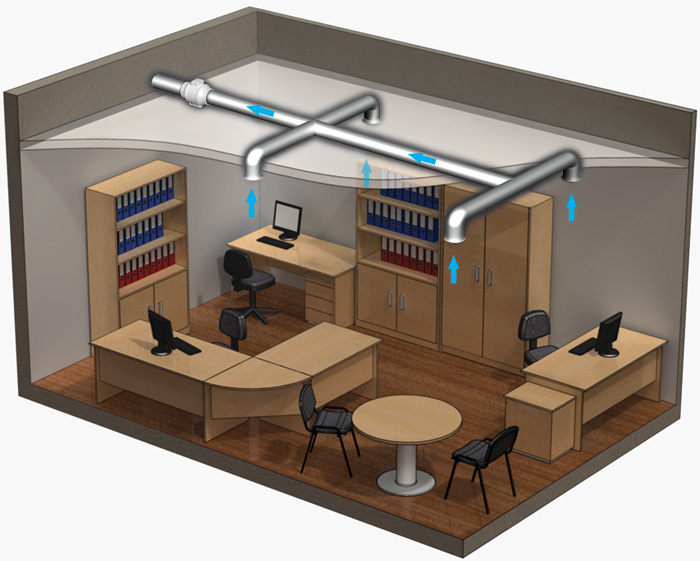

Ventilators ir paredzēts telpu gaisa izvades un piegādes sistēmai.
Montējams apaļā gaisvadā.
Gultņu motors nodrošina ilgu kalpošanas laiku – vismaz 40000 darba stundu.
Aizsardzība pret pārkaršanu.
Vienfāzes, ar asinhronu viena/divu ātrumu elektromotoru.
Divpolu savienojums.
Maksimālā darba temperatūra: +60ºC.

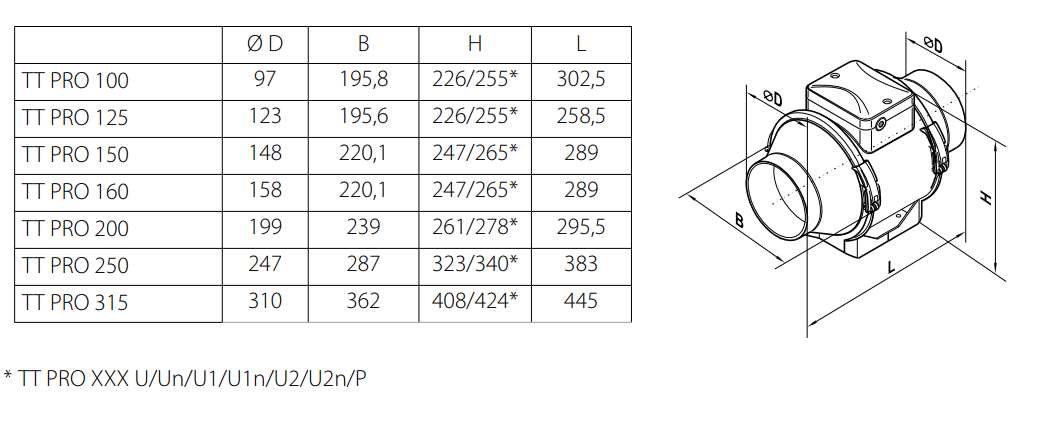

D = 315mm

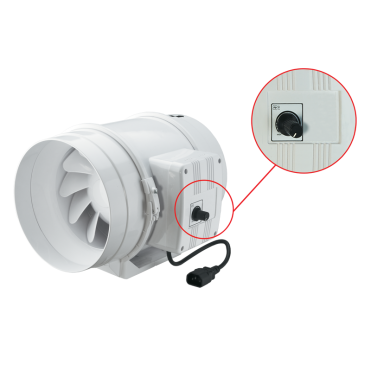

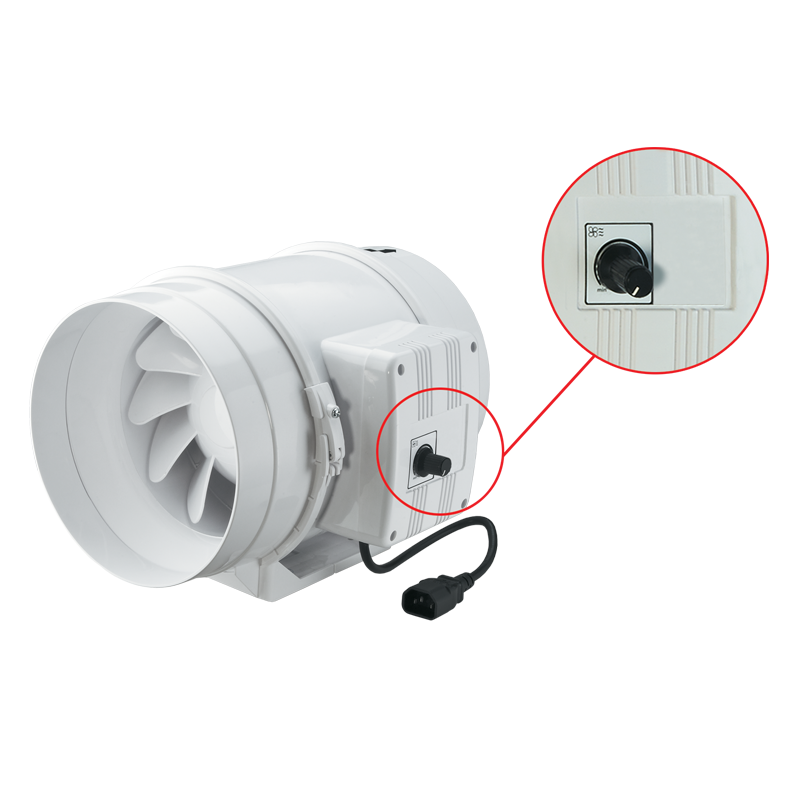

Vadība ar ātruma kontrolleriem un temperatūras kontrolleriem (iegādājami atsevišķi).
Parameter | ТТ PRO 315 min |
ТТ PRO 315 max |
Measurement unit |
---|---|---|---|
Voltage | 1~230 | V | |
Frequency | 50/60 | Hz | |
Current | 1 | 1.42 | A |
Sound pressure level at 3 m distance | 49 | 58 | dBА |
Power consumption | 320 | W | |
Maximum air capacity | 1570 | 2050 | m³/h |
RPM | 1890 | 2430 | min-1 |
Max. transported air temperature | 60 | °С | |
Protection rating | IP X4 | - | |
Duct diameter | 315 | mm | |

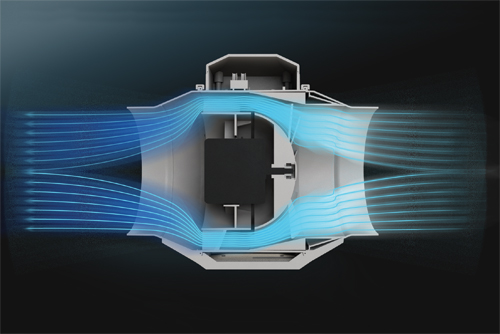

Design | mixed-flow | - | |
Weight | 11.95 | kg | |
Casing material | plastic | - | |
SEC Class | - | - | |
Duct | for round air ducts | - | |
Mounting | Inline | - | |
* | To meet the requirements of ErP 2018, a speed controller and local demand control typology must be applied (connect a sensor). |
- |
